Wiring principles of Jiangmen distribution box

2020-02-28 700

We cannot do without electricity. We use electricity almost every day, and electricity has become an indispensable part of our daily lives. Today, we will introduce the wiring guidelines for distribution boxes and provide you with a comprehensive explanation of the common knowledge in this area. We hope it can help us understand how to wire distribution boxes.

Wiring guidelines for distribution boxes

Wiring must be carried out according to the principles of aesthetics and elegance:

1. First, label the three wire heads of each distribution circuit with their names and purposes;

2. Then straighten and straighten the wires, without any bending or bending phenomenon;

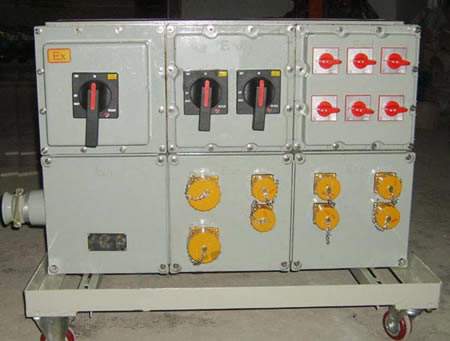

江门配电箱

3. Then group and level the wiring, that is, separate and concentrate the zero line, live line, and ground line;

4. Follow the principle of horizontal and vertical wiring to the neutral line, branch switch, and ground line;

5. Measure the length to the wiring direction, cut the wires, and peel off the insulation from the wiring direction;

6. Finally, insert the conductor part of the wire into the wiring direction, press it tightly, but do not press it onto the insulation skin, and do not expose the conductor;

7. When wiring, only one wire should be pressed into one crimping hole, and multiple wires should not be pressed into one hole.

Through the introduction above by the editor, I believe that we have gained a certain understanding of the wiring guidelines for distribution boxes and have grasped some relevant common sense
